At Architectural Design Hardware we offer a huge range of hinges to suit all your needs. Visit our supplier links page here for detailed information.
The following is a sample of stainless steel hinges we have available to our customers.
There are many hinge styles to suit all doors. If you do not see what you want, please ask.
Hinges can be made from stainless steel, brass, zinc, steel, aluminum, and iron. We can offer these choices to our customers.
Finishes on stainless steel hinges are brushed, polished, black and a PVD gold finish.
Note: We offer a huge selection of quality brass made hinges through our Tradco supplier.
STAINLESS STEEL HINGES

Stainless Steel 304 Grade Lift Off Hinge 100x75x2.5mm – Left Hand
Lift-Off Hinge 100x75x2.5mm
Left Hand
Suitable for Timber doors with Timber or Metal frames
Suitable for WC doors that swing within 1200mm of the pan
Hinge Pin length 15mm
Industry Standard hole pattern
Door weight up to 25kg

Stainless Steel 304 Grade Lift Off Hinge 100x75x2.5mm – Right Hand
Lift-Off Hinge 100x75x2.5mm
Right Hand
Suitable for Timber doors with Timber or Metal frames
Suitable for WC doors that swing within 1200mm of the pan
Hinge Pin length 15mm
Industry Standard hole pattern
Door weight up to 25kg

Stainless Steel 304 Grade Lift Off Hinge 100x82x3mm
Lift-Off Hinge 100x82x3mm
Non-Handed
Suitable for Timber doors with Timber or Metal frames
Suitable for WC doors that swing within 1200mm of the pan
Hinge Pin length 15mm
Door weight up to 25kg

Stainless Steel 304 Grade Butt Hinge 100x60x2.5mm Fixed Pin
Light Duty Narrow Butt Hinge 100x60x2.5mm
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern

Stainless Steel 304 Grade Butt Hinge 100x60x2.5mm Loose Pin
Light Duty Narrow Butt Hinge 100x60x2.5mm
Loose Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern

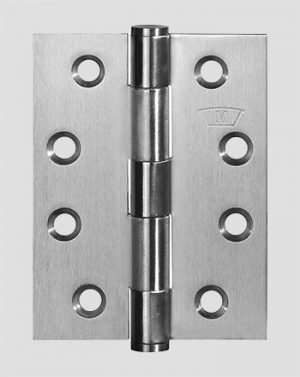

Stainless Steel 304 Grade Butt Hinge 100x75x2.5mm Fixed Pin
Medium Duty Butt Hinge 100x75x2.5mm
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated

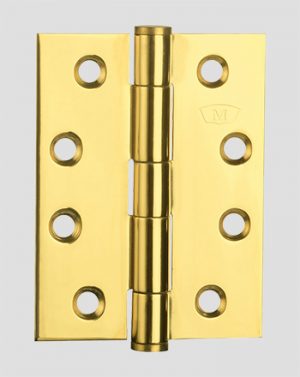

Finish: Stainless Steel in PVD, PSS, SS, and Black
Finish: Stainless Steel in PVD, PSS, SS, and Black

Stainless Steel 304 Grade Butt Hinge 100x75x2.5mm Loose Pin
Medium Duty Butt Hinge 100x75x2.5mm
Loose Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated
Finish: Stainless Steel in PVD, PSS, SS, and Black

Stainless Steel 304 Grade Anti-Ligature Ball Bearing Butt Hinge 100x75x2.5mm
Heavy Duty Ball Bearing Butt Hinge 100x75x2.5mm
Anti-Ligature Knuckle
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern

Stainless Steel 304 Grade Ball Bearing Butt Hinge 100x75x2.5mm
Heavy Duty Ball Bearing Butt Hinge 100x75x2.5mm
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated
Finish: Stainless Steel in PVD, PSS, SS, and Black

Stainless Steel 304 Grade Butt Hinge 100x100x2.5mm Fixed Pin
Medium Duty Butt Hinge 100x100x2.5mm
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated
Finish: Stainless Steel in PVD, PSS, SS, and Black

Stainless Steel 304 Grade Butt Hinge 100x100x2.5mm Loose Pin
Medium Duty Butt Hinge 100x100x2.5mm
Loose Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated
Finish: Stainless Steel in PVD, PSS, SS, and Black

Stainless Steel 304 Grade Ball Bearing Butt Hinge 100x100x2.5mm
Heavy Duty Ball Bearing Butt Hinge 100x100x2.5mm
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated
Finish: Stainless Steel in PVD, PSS, SS, and Black

Stainless Steel 304 Grade Ball Bearing Wide Throw Butt Hinge 100x150x3mm
Heavy Duty WIde Throw Ball Bearing Butt Hinge 100x150x3.0mm
Fixed Pin
Suitable for doors required open past Architraves, Wall reveals, etc
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern

Stainless Steel 304 Grade Ball Bearing Wide Throw Butt Hinge 100x200x3mm
Heavy Duty WIde Throw Ball Bearing Butt Hinge 100x200x3.0mm
Fixed Pin
Suitable for doors required open past Architraves, Wall reveals, etc
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern

Stainless Steel 316 Grade Butt Hinge 100x75x2.5mm
Heavy Duty Butt Hinge 100x75x2.5mm
316 Marine Grade Stainless Steel
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated
Finish: SSS and PSS

Stainless Steel 316 Grade Ball Bearing Butt Hinge 100x100x2.5mm
Heavy Duty Ball Bearing Butt Hinge 100x100x2.5mm
316 Marine Grade Stainless Steel
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern
Fire Rated
Finish: SSS and PSS

Stainless Steel 304 Light Duty Interfold Hinge – Offset Knuckle
Light Duty Interfold Hinge 100mm
Offset Round Knuckle
Suitable for Aluminium & some Timber doors in Aluminium frames

Stainless Steel 304 Medium Duty Interfold Hinge – Offset Knuckle
Medium Duty Interfold Hinge 100mm
Offset Round Knuckle
Suitable for Aluminium & some Timber doors in Aluminium frames
Finish: Black, PVD and SSS

Stainless Steel 304 Anti-ligature Interfold Hinge – Wrap-around Face Fixing
Medium Duty Ball Bearing Interfold Hinge 100mm
Anti-Ligature Knuckle End Cap
Wrap-around face fixing to door & frame
Suitable for Commercial Aluminium & some Timber doors in Aluminium frames
Suitable for either Centre Pocket or Front Edged Glazing systems
Hinge positioning locator allows for faster & easier installation
Finish: Black, PSS and SSS

Stainless Steel 304 Medium Duty Interfold Hinge – Wrap-around Face Fixing
Medium Duty Ball Bearing Interfold Hinge 100mm
Wrap-around face fixing to door & frame
Suitable for Commercial Aluminium & some Timber doors in Aluminium frames
Suitable for either Centre Pocket or Front Edged Glazing systems
Hinge positioning locator allows for faster & easier installation
Finish: Black, PVD and SSS

Stainless Steel 304 Medium Duty Interfold Hinge – Offset Knuckle
Medium Duty Ball Bearing Interfold Hinge 100mm
Offset Round Knuckle
Suitable for Commercial Aluminium & some Timber doors in Aluminium frames
Suitable for either Centre Pocket or Front Edged Glazing systems
Finish: Black, PVD and SSS

Stainless Steel 304 Grade Ball Bearing Butt Hinge 100x75x3.0mm
Heavy Duty Ball Bearing Butt Hinge 100x75x3.0mm
Fixed Pin
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern

Stainless Steel 304 Medium Duty Interfold Hinge
Medium Duty Interfold Hinge 102mm
Suitable for Aluminium & some Timber doors in Aluminium frames
Suitable for either Centre Pocket or Front Edged Glazing systems

Stainless Steel 304 Grade Heavy Duty Ball Bearing Hospital Hinge 100×85/42.5×3.5mm Fixed Pin
Heavy Duty Ball Bearing Hospital Hinge 100×85 – 42.5×3.5mm
The swing clear hinge is designed to swing the door clear of the door opening allowing extra door clearance for wheelchairs and walkers
Suitable for Timber doors with Timber or Metal frames
Industry Standard hole pattern

Stainless Steel 304 Grade Screen Door Hinge 75x45x1.5mm Fixed Pin
Screen Door Hinge 75x45x1.5mm
Fixed Pin
The Step over door leaf is suitable for most Aluminium Security and Barrier door

Stainless Steel 304 Grade Security Butt Hinge 102x76x2.5mm
Security Pin 10mm diameter x 16mm in length to secure the door in position
Heavy Duty Ball Bearing Butt Hinge 102x76x2.5mm
Fixed Pin
Suitable for Timber doors with Timber or some Metal frames

Stainless Steel 304 Grade Medium Duty Washered Butt Hinge 102x103x2.5mm Fixed Pin
Medium Duty Washered Butt Hinge 102x103x2.5mm
Fixed Pin
Suitable for Timber doors with Timber frames

Stainless Steel 304 Grade Medium Duty Washered Butt Hinge 76x50x1.5mm Fixed Pin
Medium Duty Washered Butt Hinge 76x50x1.5mm
Fixed Pin
Suitable for Timber doors with Timber frames

Stainless Steel 304 Grade Parliament Hinge Washered 100x175x3.5mm Fixed Pin
Parliament Hinge Washered 100x175x3.5mm
Fixed Pin
Suitable for doors, French doors opening past deep Architraves, Wall reveals, etc
Suitable for Timber doors with Timber frames
Door weight up to 120kg

Stainless Steel 304 Grade Parliament Hinge Washered 125x175x3.5mm Fixed Pin
Parliament Hinge Washered 125x175x3.5mm
Fixed Pin
Suitable for doors, French doors opening past deep Architraves, Wall reveals, etc
Suitable for Timber doors with Timber frames
Door weight up to 120kg

Stainless Steel 304 grade Piano Hinge 29×1.0x1830mm – Drilled
Continuous Piano Hinge 29×1.0x1830mm
Load is distributed over the entire length of the hinge
Suitable for Timber or Metal doors
Ideal for Furniture/Cabinets and Metal Cabinets/Toolboxes
Can be cut to length to suit Door height
Pre- drilled fixing holes at 51mm centre to centre

Stainless Steel 304 grade Piano Hinge 32×1.0x1830mm – Drilled
Continuous Piano Hinge 32×1.0x1830mm
Load is distributed over the entire length of the hinge
Suitable for Timber or Metal doors
Ideal for Furniture/Cabinets and Metal Cabinets/Toolboxes
Can be cut to length to suit Door height
Pre- drilled fixing holes at 51mm centre to centre

Stainless Steel 304 grade Piano Hinge 38×1.0x1830mm – Drilled
Continuous Piano Hinge 38×1.0x1830mm
Load is distributed over the entire length of the hinge
Suitable for Timber or Metal doors
Ideal for Furniture/Cabinets and Metal Cabinets/Toolboxes
Can be cut to length to suit Door height
Pre- drilled fixing holes at 51mm centre to centre

Stainless Steel 304 grade Piano Hinge 51×1.6x1830mm – Undrilled
Continuous Piano Hinge 51×1.6x1830mm
Load is distributed over the entire length of the hinge
Suitable for Timber or Metal doors
Ideal for Furniture/Cabinets and Metal Cabinets/Toolboxes
Can be cut to length to suit Door height

Stainless Steel 304 grade Piano Hinge 76×1.6x1830mm – Drilled
Continuous Piano Hinge 76×1.6x1830mm
Load is distributed over the entire length of the hinge
Suitable for Timber or Metal doors
Ideal for Furniture/Cabinets and Metal Cabinets/Toolboxes
Can be cut to length to suit Door height
Pre- drilled fixing holes at 51mm centre to centre

Stainless Steel 304 grade Piano Hinge 102×3.0x1830mm – Drilled
Continuous Piano Hinge 102×3.0x1830mm
Load is distributed over the entire length of the hinge
Suitable for Timber or Metal doors
Ideal for Furniture/Cabinets and Metal Cabinets/Toolboxes
Can be cut to length to suit Door height
Pre- drilled fixing holes at 51mm centre to centre
PIVOT HINGE

Angle Shoe Centre line Pivot Non Handed
Aluminium Angle Shoe Centreline Pivot
Non-Handed
Suitable for Duct doors, Service Hatches, Shutter, Closet/Robe doors & Casement type windows
Door weight up to 50kg

Flat Strap Centre line Pivot Non Handed
Aluminium Flat Strap Centreline Pivot
Non-Handed
Suitable for Duct doors, Service Hatches, Shutter, Closet/Robe doors & Casement type windows
Door weight up to 50kg
At Architectural Design Hardware we offer solutions for hanging doors from hinges to pivots and sliding. There is a huge selection on offer that can accommodate your particular door challenge.
Visit our showroom for inspiration and answers.
