Double Action Hinge



At Architectural Design Hardware we offer a huge range of hinges to suit all your needs. Visit our hinge supplier links page here for detailed information.


Double action hinges are designed to allow the doors to swing in both directions. The spring hinges act to return the door to the close position.


These hinges are great for any door you want to walk through in both directions and have the door come back to centre automatically.


They are frequently used in hospitals, hotels and restaurants, and even many homes install these hinges for the closing application in both directions.


Aesthetically pleasing to the eye, Justor’s spring hinges have won international design awards and are used worldwide.


Justor hinges are supplied through Bellevue Imports to Architectural Design Hardware.


An example of their usage within Australia has been doors leading to pools, WC doors within hospitals and restaurants, front doors for apartments and houses, kitchen doors within restaurants, IT communications room doors, gates, office & perimeter doors, just to name a few.



Doors that swing both ways...

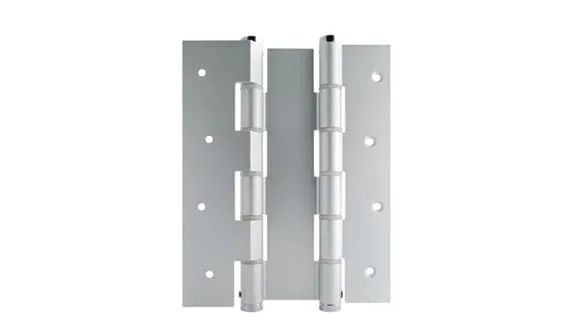

JUSTOR 50MM SPRING DOOR HINGE - BIDA180A


Simplistically the function of the BIDA180 double action spring hinge is to bring a door that swings open in both directions back to the centre position i.e. a kitchen door in a restaurant. Made out of Aluminium, Zinc or Stainless Steel the BIDA180 Double Action Spring Hinges are ideal for internal or external applications, wherever a dual swing door (a door that swings in both directions such as a pivot door does) needs to return to a centre position without assistance.


The BIDA180 has three (3) tension settings in each direction and adjustments can be made without having to take the door off. Made to exacting European standards in Spain by Justor, the BIDA180 is a maintenance free solution - no periodic greasing or adjustments required, just 1 drop of oil in the top top caps once a year. The BIDA180 spring hinge comes with a 2 year manufacturer’s Guarantee. Cost effective and highly functional, it is a real and effective alternative to traditional double action closers and pivot sets.


Aluminium, Zinc, 304 & 316 Stainless Steel


Base Material: Aluminium

• BIDA180AAS - Anodized Silver (max 50mm thick door)

• BIDA180AS - Anodized Silver (max 40mm thick door)

• BIDA180BLK - Anodized Black (max 40mm thick door)

• BIDA180WHT - Alum PC White (max 40mm thick door)

• BIDA180AB - Anodized Bronze (max 40mm thick door)

• BIDA180AG - Anodized Gold (max 40mm thick door)

• BIDA180EAS - Anodized Silver (max 30mm thick door)

• BIDA180EAB - Anodized Bronze (max 30mm thick door)

• BIDA180EAG - Anodized Gold (max 30mm thick door)


Base Material: Stainless Steel and Zink Plated

• BIDA180SS - 304 Grade SS (max 40mm thick door)

• BIDA180S3 - 316 Marine Grade SS (max 40mm thick door)

• BIDA180ZP - Zinc (max 40mm thick door)

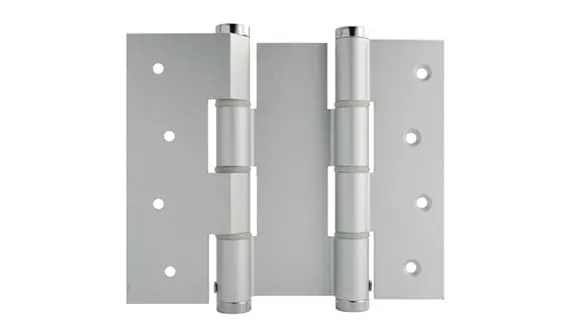

JUSTOR NARROW SPRING HINGE - BIDA120E



DOUBLE ACTION SPRING HINGE FOR LIGHTWEIGHT DOORS

  • Torsion spring not coil spring (tested to 500,000 cycles)

  • Designed for door thickness up to 40 mm.

  • Variable closing speed

  • Up to 55kg bearing capacity

  • 90º or 180º working aperture

  • Suitable with timber and aluminium or metal doors

  • Resistant to extreme climates (cold & humidity)

  • Suitable for residential and commercial.

  • Minimum door thickness BIDA120: 40mm BIDA120E: 30mm

  • Quick & simple installation

  • Repair kits available including spring, nylon or stainless spacer, caps & locking pins

The BIDA120 double action spring hinge is an extension of the enormously successful larger BIDA180 double action spring hinge. It’s the same in all respects, just smaller. It’s been designed to provide the same functionality as the BIDA180 but on lighter weight doors.


The BIDA120 is ideal for internal or external applications, wherever a dual swing door needs to return to a centre position without assistance. Once installed the BIDA120 spring hinge can be adjusted to bring the door back quickly or slowly in either direction. The BIDA120 has multiple tension settings and adjustments can be made without having to take the door off.


Aluminium & 304 Stainless Steel


Base Material: Aluminium

• BIDA120AS - Anodized Silver (max 40mm thick door)

• BIDA120BLK - Anodized Black (max 40mm thick door)

• BIDA120WHT - Alum PC White (max 40mm thick door)

• BIDA120AB - Anodized Bronze (max 40mm thick door)

• BIDA120AG - Anodized Gold (max 40mm thick door)

• BIDA120EAS - Anodized Silver (max 30mm thick door)

• BIDA120EAB - Anodized Bronze (max 30mm thick door)

• BIDA120EAG - Anodized Gold (max 30mm thick door)


Base Material: Stainless Steel and Zink Plated

• BIDA120SS - 304 Stainless Steel (max 40mm thick door)

• BIDA120ZP - Zinc Plated (max 40mm thick door)



JUSTOR WALL MOUNTED SPRING HINGE - BIDA180W & BIDA180WA



SPRING HINGE THAT MOUNTS TO ANY FLUSH SURFACE (NO JAMB)

  • Torsion spring not coil spring (tested to 500,000 cycles)

  • Automatically closes door

  • Variable closing speed

  • 90º and 180º working aperture

  • Suitable with timber and aluminium door

  • Resistant to extreme climates (cold & humidity)

  • Suitable for residential and commercial.

  • Minimum door thickness BIDA180W – 35mm BIDA180WA – 45mm

  • Quick & simple installation\

  • Repair kits available including spring, nylon or stainless spacer, caps & locking pins


Specifically made for the general market, Justor’s Double Action range of hinges adapts perfectly to all kinds of swing doors, timber or Aluminium. This is possible thanks to the specific design of the hinge and of the torsion based blades within the body (knuckle).


Each hinge has 3-points of force intensity, easily adjustable. Optimal work efficiency with 2 hinge instalation, as well as 3 hinge installation for heaver doors. Load capacity up to 65kg (see application table).


Justor Double action hinges are available in a range of finishes including Silver, Gold, Bronze, Black, White, Stainless Steel (304 and 316) and Zinc Plated just to name a few. A finish for any project or environment.



JUSTOR WALL MOUNTED SPRING HINGE - BIDA120W



WALL MOUNTED HINGE – NO JAMB REQUIRED


  • Suitable with timber and aluminium doors

  • Torsion sprung not coil

  • Spring resistance 500,000 cycles

  • Resistance to extreme climate conditions (cold & humidity)

  • Maximum resistance to bending

  • Variable closing strength (speed)

  • 90º or 180º working aperture

  • 2 year manufacturer’s guarantee

  • Suitable with commercial and residential projects

What makes the BIDA120W & BIDA180W totally unique is its revolutionary design. Specifically engineered to cater for doors where the traditional jamb for the hinge to be mounted to does not exist.


With this fact in mind, the BIDA120W & BIDA180W opens up endless possibilities to where you can hang a door and how the door and wall can be designed with aesthetics of the environment in mind. Ideal for internal or external applications, wherever a dual swing door (a door that swings in both directions such as a pivot door does) needs to return to a centre position without assistance.


Designed to automatically close doors with a subtle visual appearance. Its sleek, stylish and simple design makes it ideal for all environments. Made in Spain by Justor, the BIDA120W & BIDA180W are highly functional and adjustable to bring the door back quickly or slowly.


For more hinge choices visit our web page here Our supplier links page to hinges is here




At Architectural Design Hardware we offer solutions for hanging doors from hinges to pivots and sliding. There is a huge selection on offer that can accommodate your particular door challenge.


Visit our showroom for inspiration and answers.
