Zanda Rutland Door Closer

Updated: Feb 12



Rutland Door Closers are the industry’s choice for quality and durability. From Buckingham Palace to the largest shopping center in Europe, Rutland products feature on millions of doors worldwide. In fact, a Rutland door closer is currently sold every 31.57 seconds.


Zanda Architectural Hardware is the exclusive Australian distributor for a select collection of Rutland door controls suited for the rigors of Australian conditions.


Here at Architectural Design Hardware we have the privilege to offer the Rutland Door Closer. Visit our showroom or contact us for more information.


Need a door closer? If you need a door closer, you will need to know a few details. Not all door closers are the same. There are differences for specific needs, weights, and locations. Most important is what will the door in question be used for.


  • Is it a Fire Door Exit?

  • Is it for residential?

  • Is it for disabled access?

  • Is it for old and frail people?

  • Is it for high traffic areas?

  • Is it subjected to the elements?

  • How heavy is the door?

  • How wide is the door?

These questions and more are important and will help select the best door closer for your use.


We could sell you a door closer (with our eyes closed) or we could help you select the right door closer for the purpose it is intended for. We will ask you the questions. You can raise your own questions.


At Architectural Design Hardware we will help you find the right direction. Our showroom is open.


The wide-ranging product portfolio satisfies a broad spectrum of functional requirements and thus offers solutions for almost any individual door situation.


EN Ratings - choosing your door closer


Door Closers are rated by opening/closing force "Size". The Size ratings are from EN1 to EN6, with Size EN1 the weakest strength and Size EN6 the strongest. EN1 is also suitable for disabled door applications.


The following are guides only:


  • Size #1 = 0.45 of a kilogram closing force, minimum

  • Size #2 = 0.9 of a kilogram closing force, minimum ~standard door width ≤ 850 mm

  • Size #3 = 1.36 of a kilogram closing force, minimum ~standard door width ≤ 950 mm

  • Size #4 = 1.81 of a kilogram closing force, minimum ~standard door width ≤ 1100 mm

  • Size #5 = 2.26 of a kilogram closing force, minimum ~standard door width ≤ 1600 mm

  • Size #6 = 2.72 of a kilogram closing force, minimum ~standard door width ≤ 1600 mm

EN2 – Max Door Weight 70kg, Max Door Width 850mm,

EN3 – Max Door Weight 105kg, Max Door Width 950mm,

EN4 – Max Door Weight 150kg, Max Door Width 1200mm



Many popular door closers have an adjustable open/close or latch speed setting. Example: If a door closer is listed with a open/close or latch speed of 3-6 then it is adjustable through the Power range of EN3 (1.36 kg of force) to EN6 (2.72 kg of force).







The Rutland Door Closer Collection


Standard Door Closer / Slimline Door Closer / Cam Action Door Closer / Concealed Door Closer / Concealed Hinge / Floor Spring / Transom Closer / Accessories


Standard Door Closer


TS3204 CONTRACT DOOR CLOSER (EN2/3/4)


Style and performance come together with the TS.3204 door closer. This door closer is ideal for mid-range contracts. Available in power size EN 2-4, they’re CE marked and classified to meet and exceed European standards. Can be used on a door up to 80kg in weight and 1100mm in width.

Brochure and Data - pdf



Slimline Door Closer


TS9205 ARCHITECTURAL DOOR CLOSER (EN2-5)


The TS.9205 door closer is known for high efficiency, dual zone, quality, reliability and ease of opening, making it one of our top specified closers


It assists doorsets in meeting the requirements of Approved Document M and BS 8300. With its easy-to-read instructions and adjustable power EN 2-5 mechanism it saves you approximately 12.5 minutes on fitting time.


Temperature stable hydraulic oil is unique to Rutland closers. This means the TS.9205 can be used in temperatures from -15?C to 40?C.


This product is also available in a range of metal finishes including MARINE 316, a true Stainless Steel finish.


The max door weight is 110kg and the max door width is 1250mm making it ideally suited to most timber or aluminum doors. The TS9205 door closer comes complete with adjustable closing speed, latch action, delayed action and back check.


Available in additional 5 finishes; Antique Copper, Light Bronze, Medium Bronze, Dark Bronze, Antique Pewter, to special order (4-8 week lead-time).

Brochure and Data - pdf


TS 9205 with sliding arm in Matt Black







TS9206 ARCHITECTURAL DOOR CLOSER (EN2-6)


When you need a highly efficient door closer with immense torque and control, the TS.9206 comes into its own.


Ideal for heavy usage, it comes with a slimline appearance and power-adjustable force to meet the specification requirements of the most discerning architectural contracts.


Temperature stable hydraulic oil is unique to Rutland closers. This means the TS.9206 can be used in temperatures from -15?C to 40?C.


More specifications listed here



TS9205 DOOR CLOSER - 316 STAINLESS STEEL


The EN2-5 TS.9205 Door Closer is engineered to last and known for its high efficiency, ease of opening and reliability. They are super adjustable – can be adjusted to suit almost all types of door.


With its easy-to-read instructions and an adjustable power EN 2-5 mechanism, installers estimate it saves them approximately 12.5 minutes on fitting time compared with other closers.


This closer is constructed from 316 Marine Grade Stainless Steel making them ideally suited to corrosive or high humidity situations.

  • 10 year warranty – fit and forget.

  • Variable power adjustable EN2-5 – suits doors up to 110kg & 1250mm wide.

  • Universal application – can be fitted in Standard, Parallel arm or Transom fitting position.

  • Comes standard with delayed action & back check.

  • Unique semi-radius cover for an architectural look – make your project stand out.

  • Fire tested to Australian standards.

  • Ideal for disability compliant projects due to its ease of opening and efficiency.

  • Closing and latching speeds can be adjusted from the front of the mechanism.

  • Suitable for timber, metal and aluminium doors.





Cam Action


Cam action door closers are renowned for their high efficiency and ease of opening – proof of the elegant engineering that has made us famous.


This surface slide arm closer has a slimline construction and temperature stable hydraulic fluid, which operates effectively in temperatures between -15°C and +40°C. It features and adjustable latch and closing speed and is available with a mounting plate for increased fixing strength.



TS11204 CAM ACTION DOOR CLOSER


The TS11204 Cam action Door Closers, with their renown high efficiency and ease of opening, are what specifiers have come to learn and expect from Rutland Door Closers.


Cam Actions have been used for decades in many and varied applications globally where the characteristics of the Cam, breed the performance, quality, reliability and design associated with Rutland.


The TS11204 high efficiency door closers are ‘Engineered to Perform’ assisting door sets to meet the requirements of approval Document M and BS8300 recommendations.

Brochure and Data - pdf





TS.11205 - CAM ACTION DOOR CLOSER


Rutland TS.11205 cam action door closer is renown for its high efficiency and Powerlatch engineering.


With it’s cam and roller mechanism, this door closer makes doors easy to open, helping to assist with disabled compliance and recommendations.


The door closer features;

  • Opening angle 120 degrees

  • Non-handed

  • 35 year guarantee

  • Adjustable latch speed & closing speed

  • Max door width of 1250mm

  • Power size 2-5

  • Max Door Weight of up to 110kg






G555 CONCEALED DOOR CLOSER


G555 Concealed Door Closer Features:

  • Completely concealed into either jamb or top of door.

  • Extremely smooth and efficient operation and extremely easy to open and close ideal for the elderly or disabled.

  • Tested to 300,000 cycles for your peace of mind.

  • Adjustable latching speed.

  • Hold open at 90 degrees, opening angle 180 degrees.

  • 100kg weight rating.

  • Minimum door thickness 45mm (if installing closer into door, not jamb).






CONCEALED HINGES - 3D ADJUSTABLE


NEW 3D ADJUSTABLE CONCEALED HINGES Great new invisible concealed door hinges in two different sizes for heavy duty doors. Other specifications include;

  • Silver finish. Matt Black available to special order (4 week lead time).

  • Can be used on interior or exterior doors.

  • These hinges allow three-dimensional adjustment (depth, vertical and horizontal). This means the door can be aligned with the wall to perfection where there is frameless architecture.

  • Maximum opening angle of 180 degrees.

  • Hinge reversible for right/left doors.

  • Comes with Self-lubricating anti-friction washers.

  • Fire proof and tested for 200,000 cycles.

5970 – 25mm width x 152mm height, Minimum Door Thickness; 36mm. 2 x hinges can take a 50kg door, 3 x hinges can take a 60kg door.

5972 – 28mm width x 177mm height, Minimum Door Thickness; 40mm. 2 x hinges can take a 80kg door, 3 x hinges can take a 90kg door.






FLOOR SPRINGS


The Rutland floor closer range is ideal for locations such as hospitals and care homes where easy opening is essential.


Also commonly used in residential front pivot doors, the TS7000 Floor Springs can be used on Timber Doors, Glass Doors or Aluminium Doors making them ideally suited for both residential and commercial applications.


They’re enhanced with powerful, user friendly cam and roller action mechanisms. You can choose from three power sizes, EN2, 3 or 4.


What's more, with a 316 Marine Grade Stainless Steel cover plate, these Floor Springs are hard to beat.



TS7000 FLOOR SPRING


The Rutland TS.7000 range of floor closer springs are enhanced with their powerful but easy to use cam & roller action mechanisms.


Available in three power sizes, EN2, EN3, EN4, and a very power EN1-4 adjustable power version. This is becoming increasingly recognised especially in the glass industry where quality, reliability, adjustability, and adaptability are all features required.


These Floor Springs are commonly used on timber and aluminium pivot doors with great effect. They are also ideally suited for use in hospitals, surgeries, nursing homes etc, where easy opening is required.


Temperature Stable hydraulic oil is one of its unique properties which show the exacting standards that Rutland manufacture their products to. These floor springs can be used in temperatures from -15 degree Celsius to 40.

Brochure and Data - Zanda website





TS7306 HEAVY DUTY FLOOR SPRING


The incredibly powerful TS7306 Heavy Duty Floor Spring range are ideal for locations such as hospitals and care homes where easy opening is essential.

They’re enhanced with powerful, user friendly cam and roller action mechanisms. This adjustable power version is available from size 3-6. Features include;

  • Opening Angle: 130

  • Universal Application

  • 10 Year Guarantee

  • Adjustable Latch Speed

  • Back Check (optional)

  • Max Door Width: 1400mm

  • Adjustable Closing Speed

  • Power Size (EN3-6)

  • Max Door Weight: 300kg

These heavy duty Floor Springs are sold in a kit with our high quality PS.190 double action pivot set. Available in Hold Open.


You can download the spec sheets on this product here.









TRANSOM OVERHEAD DOOR CLOSERS


The Rutland TS.8000 transom closers control doors worldwide.


Manufactured with a cam and roller mechanism, and they’re available with or without hold-open functionality.


They’re available in three fixed sizes as standard: EN 2, EN 3 and EN 4.



TRANSOM OVERHEAD DOOR CLOSERS


EN2 – Max Door Weight 70kg, Max Door Width 850mm,

EN3 – Max Door Weight 105kg, Max Door Width 950mm,

EN4 – Max Door Weight 150kg, Max Door Width 1200mm


Download Full Spec Sheet






PIVOTS & STOPS

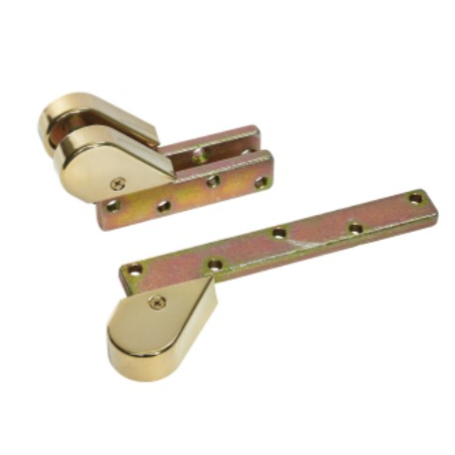

TOP CENTRE PIVOT - SINGLE ACTION ACCESSORY PACK


PS.170, use in conjunction with a floor mounted spindle where a free swing (non hydraulic) pivot door is required. Stainless Steel finish.





TOP CENTRE PIVOT - DOUBLE ACTION ACCESSORY PACK


PS.180, use in conjunction with a floor mounted spindle where a free swing (non hydraulic) pivot door is required. Stainless Steel finish.




TOP CENTRE PIVOT - RETRACTABLE


PS.210, use in conjunction with a floor mounted spindle where a free swing (non hydraulic) pivot door is required. Stainless Steel finish.





FLOOR MOUNT SPINDLE BEARING


PS.260, use in conjunction with a top centre pivot where a free swing (non hydraulic) pivot door is required. Stainless Steel finish






EMERGENCY RELEASE DOOR STOP


  • Use in conjunction with a pivot set.

  • Allows double action door to operate as single swing, when hung on pivot doors.

  • Emergency access is gained by depressing the stop and pulling the door outward.

  • Includes hold back facility

  • Stop release resets automatically

  • Maintenance free – 10 year warranty

  • 304 Grade Stainless Steel




RESTRICTOR STAY - RS.11000


The RS11000 restrictor stay with a concealed rail in the frame is an ideal option for holding an external door. It can also be supplied with a cushion stop or a hold open clip to keep the door in the open position.


Often used on external doors to a loading bay or goods store entrance to stop the door from getting damaged by the masonry or being ripped off their hinges in a windy location.


Available in a heavy duty stainless steel finish.





CONCEALED HEEL CLOSER


The new heel closer suited for pivot doors makes for easy installation, as there is no cutting of the floor required. It includes the cover and top pivot.

  • Available as hold-open – hold-open angle 90 degrees.

  • Adjustable closing speed

  • Opening angle of 150 degrees

  • Max door width 1000mm

  • Min door thickness 40mm

  • Max door weight of up to 100kg


You can view more Zanda products on our website here



Finishes


Most door closers will be of a silver matt finish. Zanda offer a number of finishes. Ask our sales team. They can also be painted to your desired color. Matt black is popular, as is white.


DOOR WEIGHT


Calculation: Door Weight (kg) = Density (Specific Gravity) X Door Height (mm) X Door Width (mm) X Door Thickness (mm) ÷ 1,000,000 or you can try this calculator here Depending on the materials used, the weight results may differ.






At Architectural Design Hardware we offer a number of brand name door closers. If you have specific needs please consult our sales staff who can offer information and technical advice either in-house or with a specific brand representative.


You will find more door closer products on our web page here and articles here
