dormakaba Urban door handles

The dormakaba Urban Range of Leversets, created from 316 Grade Tubular Stainless Steel have the same style and contemporary good looks as our Premium Ranges.


Expertly made to ensure lifelong use and endless appeal with excellent loadability for use for use in both commercial projects and residential applications.


The dormakaba Urban 4000 series rose furniture is a high quality range of handles for commercial and domestic applications.


It is constructed of hygienic and corrosion resistant tubular 316 grade stainless steel and is suited for use in coastal or harsh conditions as well as to aesthetically please in an interior environment.


Levers are fitted onto a 53mm round rose mounting plate which has a clean 10mm projection of the door face.


The Urban 4000 series is designed to compliment the dormakaba Australian mortice lock and tubular latch range, but equally compatible with similar Australian locks and latches.


The Urban 4000 series door furniture has been tested on fire door assemblies in accordance with Australian Standards


The option for a square rose finish is also available.


4300-27T dormakaba Urban door handles

8300-40T dormakaba Urban door handles

4300-45T dormakaba Urban door handles

4300-60T dormakaba Urban door handles

4300-70T dormakaba Urban door handles


4300-75T dormakaba Urban door handles

4300-80T dormakaba Urban door handles

4300-81T dormakaba Urban door handles


4300-82T dormakaba Urban door handles

4300-85T dormakaba Urban door handles

Urban 4000 Series

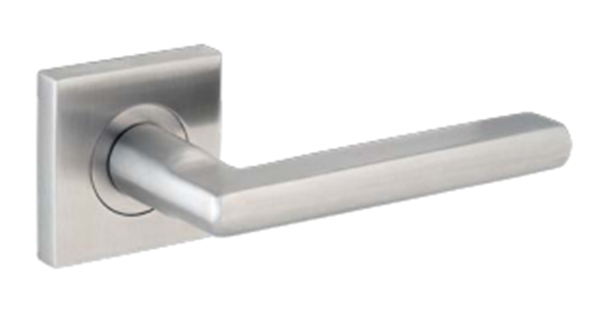

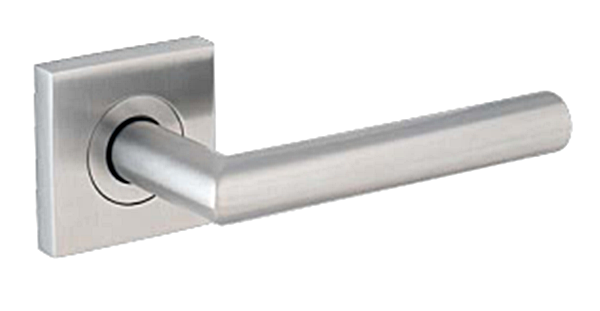

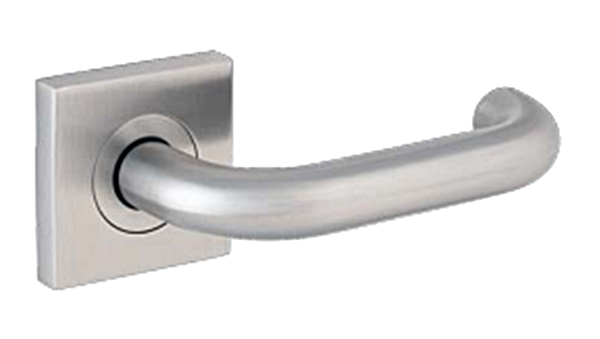

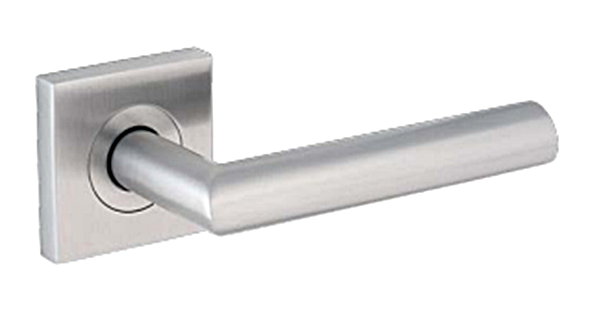

Square Rose


4400-27T dormakaba Urban door handles

4400-40T dormakaba Urban door handles

4400-45T dormakaba Urban door handles



4400-55T dormakaba Urban door handles


4400-60T dormakaba Urban door handles

4400-70T dormakaba Urban door handles

4400-75T dormakaba Urban door handles

4400-80T dormakaba Urban door handles

4400-81T dormakaba Urban door handles

4400-82T dormakaba Urban door handles


4400-85T dormakaba Urban door handles

Dimensions

  • Round rose: 53mm diameter rose, 10mm thick with 41mm fixing centres.

  • Square rose: 57mm x 57mm, 10mm thick with 41mm fixing centres.

Handing


Roses are non-handed and in most cases can be reversed


Fire Rating


The Urban 4000 series furniture is fire rated and comply with AS1905.1.


Functions


Passage/standard- sold as a pair including spindle and fixing screws less latch.

  • Privacy - sold as a pair including spindle, fixing screws and a 60mm backset privacy latch.

  • Half Set - sold as the external lever and rose including fixing screws, spindle and backing plate.

  • Fixed Lever - half set levers can be fixed with the use of a SP8000-014 fixed spindle backing plate which can be purchased as an optional accessory.


Disabled Access Compliance


A selection of lever handle designs comply with AS1428.1 2009.


Finishes

  • Satin Stainless Steel SSS

  • Polished Stainless Steel PSS

  • Special finishes include powdercoat, electroplating and PVD.
