Door Closers DormaKaba

Updated: Feb 12

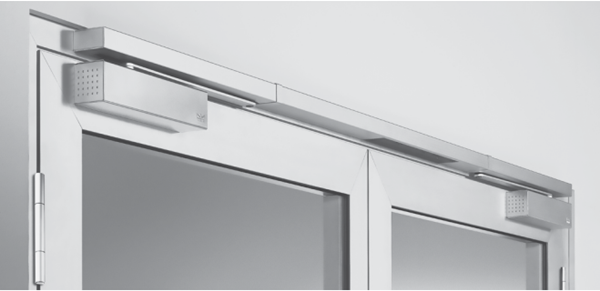

Whether for private homes or contemporary office buildings, door closer systems from dormakaba are intelligent, integrated access solutions that combine consistency, convenience, design and premium quality.


Need a door closer? If you need a door closer, you will need to know a few details. Not all door closers are the same. There are differences for specific needs, weights, and locations. Most important is what will the door in question be used for.

  • Is it a Fire Door Exit?

  • Is it for residential?

  • Is it for disabled access?

  • Is it for old and frail people?

  • Is it for high traffic areas?

  • Is it subjected to the elements?

  • How heavy is the door?

  • How wide is the door?

These questions and more are important and will help select the best door closer for your use.


We could sell you a door closer (with our eyes closed) or we could help you select the right door closer for the purpose it is intended for. We will ask you the questions. You can raise your own questions.


At Architectural Design Hardware we will help you find the right direction. Our showroom is open.


The wide-ranging product portfolio satisfies a broad spectrum of functional requirements and thus offers solutions for almost any individual door situation.


EN Ratings - choosing your door closer


Door Closers are rated by opening/closing force "Size". The Size ratings are from EN1 to EN6, with Size EN1 the weakest strength and Size EN6 the strongest. EN1 is also suitable for disabled door applications.

  • Size #1 = 0.45 of a kilogram closing force, minimum

  • Size #2 = 0.9 of a kilogram closing force, minimum ~standard door width ≤ 850 mm

  • Size #3 = 1.36 of a kilogram closing force, minimum ~standard door width ≤ 950 mm

  • Size #4 = 1.81 of a kilogram closing force, minimum ~standard door width ≤ 1100 mm

  • Size #5 = 2.26 of a kilogram closing force, minimum ~standard door width ≤ 1600 mm

  • Size #6 = 2.72 of a kilogram closing force, minimum ~standard door width ≤ 1600 mm


Many popular door closers have an adjustable open/close or latch speed setting. Example: If a door closer is listed with a open/close or latch speed of 3-6 then it is adjustable through the Power range of EN3 (1.36 kg of force) to EN6 (2.72 kg of force).




The DormaKaba Door Closer Collection



TS 97 Door Closer

The TS 97 door closer featuring EASY OPEN technology is a very compact surface-mounted door closer. Its small dimensions, uniform length of closer body and slide channel complete in the Contur design make for a convincing style. The dormakaba TS 97 is a sophisticated architectural solution for the sophisticated interior design.

Brochure and Data sheet - pdf

EN 1–5 EN 5–7



TS 93 Door Closer

The TS 93 cam action door closer system provides a high-quality architectural solution for all project application requirements. The proven dormakaba technology featuring the heart-shaped cam ensures exceptional ease of opening.

Brochure and Data - pdf

EN 1–5 EN 5–7




TS 92/91 Door Closer

Designed especially for interior applications, the universal dormakaba TS 92 and TS 91 door closer for standard doors in the award winning Contur design offers excellent ease of use due to the EASY OPEN Cam action technology.

Brochure and Data - pdf

EN 1–4 3 EN 3





TS 90 Door Closer

The TS 90 Impulse basic slide channel door closer combines technical superiority with outstanding value. The key feature of this slide channel door opener is dormakaba’s heart-shaped ‘EASY OPEN technology' cam, that makes door opening very easy and convenient.

Brochure and Data - pdf

Size EN 3/4





Dorma TS 83 Door Closer


Decades of experience have gone into the development of the Dorma TS 83 door closer. The result is user convenience coupled with outstanding versatility. It can be adjusted to suit almost all types of door. The Dorma TS 83 can even be supplied with additional anti-corrosion protection for exposed applications or aggressive conditions.

Brochure and Data - pdf

EN 3 – 6 EN 7





Dorma TS 73 V Door Closer


The Dorma TS 73 V complete with thinking backcheck and delayed closing as standard, is a universal solution for doors of differing designs and styles. Decades of experience have gone into the development of the Dorma TS 73 V door closer. The result is user convenience from a tried and trusted product.

Brochure and Data - pdf

EN 1 – 4




Dorma TS 73 EMF Door Closer


The Dorma TS 73 EMF is a combination of hydraulic door closer and electromagnetic hold-open unit. In conjunction with a smoke detection system, the TS 73 EMF can be used as a hold open system for fire and smoke check doors.

Brochure and Data - pdf

EN 4 EN 5 EN 6




Dorma TS 79 Door Closer


The Dorma TS 79 completes our classicline series of door closers perfectly. Its compact body dimensions greatly enhance its appearance whilst losing none of the great qualities that have made our classicline series door closers the market choice.

Brochure and Data - pdf

EN 2/3/4








AUSTRALIAN STANDARD

Locksets and hardware for doors and windows Part 5:

Controlled door closing devices (EN 1154:1997, MOD) EN 1154:1996 31 Scope This standard specifies requirements for controlled door closing devices for swing doors, such devices being mounted on or in the frame, on or in the door, or in the floor.


  1. The scope is limited to manually operated door closing devices where the energy for closing is generated by the user upon opening the door, such that when the door is released, it returns to a closed position, in a controlled manner.

  2. Devices such as spring hinges, which do not exert a checking control during door closing, are outside the scope of this standard.

  3. Door closing devices (door closers) manufactured in accordance with this standard are recommended for use wherever there is a requirement for reliable closing control of a door.

  4. Door closers for use on fire/smoke doors need additional attributes in order to contribute actively to meeting the essential safety requirements in case of fire, either independently or as part of a complete door assembly.

These additional requirements for door closers for use on a fire/smoke door assembly are specified in normative Annex A.

  1. Door closers incorporating electrically powered hold-open mechanisms, for use on fire/smoke door assemblies, are covered by EN 1155.

  2. Door closers incorporating door coordinator devices (with or without electrically powered hold-open devices) are covered by EN 1158.

Reference - pdf






Dorma TS 72 door closer


The Dorma TS 72 is the ideal multi-purpose door closer for all standard door designs and constructions. Without a backplate, it is particularly easy and quick to fix. The spring strength can be individually adapted to the door size by means of an adjusting hex screw.

Brochure and Data - pdf

EN 2-4




Dorma TS 68 Door Closer - a very popular model.


The Dorma TS 68 was developed as a low cost door closer solution with a uniquely styled body appearance. Its nicely curved face sets it apart from other closers in the low cost segment.

Brochure and Data - pdf

EN 2/3/4




Dorma TS 77 Door Closer


The Dorma TS 77 is a basic entry level door closer in a classic yesteryear styled body. An ideal door closer for standard doors when an economical solution is required.

Brochure and Data - pdf

EN 2 EN 3 EN 4





You can view more DormaKaba products on our website here




Finishes

Most door closers will be of a silver matt finish. They can however be painted to your desired color. Matt black is popular as is white.



DOOR WEIGHT

Calculation: Door Weight (kg) = Density (Specific Gravity) X Door Height (mm) X Door Width (mm) X Door Thickness (mm) ÷ 1,000,000 or you can try this calculator here Depending on the materials used, the weight results may differ.






At Architectural Design Hardware we offer a number of brand name door closers. If you have specific needs please consult our sales staff who can offer information and technical advice either in-house or with a specific brand representative.


You will find more door closer products on our web page here and articles here
